泛微OA E9 流程表单转为html或pdf文件相关开发整理说明

1、Wf2PdfUtil

此工具类为将流程表单转为pdf的工具类代码,可以根据实际传入参数即可实现将表单转为pdf或html，用于和档案系统集成时较多。

2、测试方法package com.weavernorth;

import com.engine.common.util.ServiceUtil;
import com.engine.workflow.service.HtmlToPdfService;
import com.engine.workflow.service.impl.HtmlToPdfServiceImpl;
import net.sf.json.JSONObject;
import weaver.file.FileSecurityUtil;
import weaver.file.FileUpload;
import weaver.file.ImageFileManager;
import weaver.general.Util;
import weaver.hrm.User;
import weaver.hrm.UserManager;
import weaver.integration.logging.Logger;
import weaver.integration.logging.LoggerFactory;
import weaver.system.SystemComInfo;
import weaver.workflow.workflow.WorkflowConfigComInfo;

import java.io.File;
import java.io.FileInputStream;
import java.util.HashMap;
import java.util.Map;

/**
 * @Classname Wf2PdfUtil
 * @Description TODO
 * @Version 1.0.0
 * @Date 2023/5/10 8:51
 * @Created by 渣渣
 */
public class Wf2PdfUtil {
    private Logger log = LoggerFactory.getLogger(Wf2PdfUtil.class);

    /**
     * @param requestid
     * @param isKeepsign 是否需要签字意见
     * @param onlyHtml   0 只转pdf  1只转html  2 都转
     * @return
     */
    public Map getwfPDF(String requestid, boolean isKeepsign, String onlyHtml) {
        String keepsign = "0";
        if (isKeepsign) {
            keepsign = "1";
        }
        UserManager userManager = new UserManager();
        User user = userManager.getUserByUserIdAndLoginType(1, "1");
        HashMap hashMap = new HashMap();
        hashMap.put("requestid", requestid);
        hashMap.put("limitauth", "0");
        //0 只转pdf  1只转html  2 都转
        hashMap.put("onlyHtml", onlyHtml);
        hashMap.put("keepsign", keepsign);
        Map filemap = null;
        try {
            log.info("表单转PDF参数:" + JSONObject.fromObject(hashMap).toString());
            filemap = this.getFileId(hashMap, user);
            log.info("表单转PDF结果:" + JSONObject.fromObject(filemap).toString());
        } catch (Exception e) {
            log.error(e.getMessage(), e);
        }
        return filemap;
    }

    public String getFileSavePath() {
        SystemComInfo systemComInfo = new SystemComInfo();
        String createDir = FileUpload.getCreateDir(systemComInfo.getFilesystem());
        createDir = createDir.replace("\\", "/");
        if (createDir.endsWith("/")) {
            createDir = createDir.substring(0, createDir.length() - 1);
        }
        return createDir;
    }

    public Map<String, String> getFileId(Map<String, Object> hashMap, User user) {
        HashMap returnMap = new HashMap();
        hashMap.put("path", this.getFileSavePath());
        hashMap.put("isTest", "1");
        this.injectuseWk(hashMap);
        HtmlToPdfService htmlToPdfService = (HtmlToPdfService) ServiceUtil.getService(HtmlToPdfServiceImpl.class, user);
        Object o = htmlToPdfService != null ? htmlToPdfService.getFormDatas(hashMap) : new HashMap();
        String path = Util.null2String(((Map) o).get("path"));
        String onlyHtml = Util.null2String(hashMap.get("onlyHtml"));
        String filename;
        String filePath;
        String fileid;
        //只转为pdf
        if (onlyHtml.equals("0")) {
            filename = Util.null2String(((Map) o).get("filename"));
            filePath = path + File.separator + filename;
            fileid = this.saveAsFile(filePath, filename);
            if (!"".equals(fileid)) {
                returnMap.put("pdf", fileid);
            }
        }
        //转为html
        else if (onlyHtml.equals("1")) {
            filename = Util.null2String(((Map) o).get("filename"));
            filePath = path + File.separator + filename;
            fileid = this.saveAsFile(filePath, filename);
            if (!"".equals(fileid)) {
                returnMap.put("html", fileid);
            }
        }
        //既要转pdf又要转html
        else if (onlyHtml.equals("2")) {
            filename = Util.null2String(((Map) o).get("pdffilename"));
            filePath = Util.null2String(((Map) o).get("htmlfilename"));
            fileid = path + File.separator + filename;
            String htmlFullPath = path + File.separator + filePath;
            String pdf_id = this.saveAsFile(fileid, filename);
            String htmlfileid = this.saveAsFile(htmlFullPath, filePath);
            if (!"".equals(pdf_id)) {
                returnMap.put("pdf", pdf_id);
            }
            if (!"".equals(htmlfileid)) {
                returnMap.put("html", htmlfileid);
            }
        }
        return returnMap;
    }

    public String saveAsFile(String filepath, String filename) {
        FileInputStream fileInputStream = null;
        byte[] bytes = null;
        File file = new File(filepath);
        if (file.exists()) {
            try {
                fileInputStream = new FileInputStream(file);
                bytes = new byte[(int) file.length()];
                fileInputStream.read(bytes);
                fileInputStream.close();
            } catch (Exception e) {
                e.printStackTrace();
            }
        }

        ImageFileManager imageFileManager = new ImageFileManager();
        imageFileManager.setComefrom("WorkflowToDoc");
        imageFileManager.setData(bytes);
        imageFileManager.setImagFileName(filename);
        int imageFileid = imageFileManager.saveImageFile();
        if (imageFileid <= 0) {
            log.info("保存离线HTML/PDF文件失败");
            return "";
        } else {
            FileSecurityUtil.deleteFile(file);
            return imageFileid + "";
        }
    }

    private void injectuseWk(Map<String, Object> map) {
        if (!map.containsKey("useWk")) {
            WorkflowConfigComInfo workflowConfigComInfo = new WorkflowConfigComInfo();
            String usewk = workflowConfigComInfo.getValue("htmltopdf_usewk");
            map.put("useWk", usewk);
        }

    }
}

2、测试方法

  Wf2PdfUtil wf2PdfUtil = new Wf2PdfUtil();
  Map map = wf2PdfUtil.getwfPDF("236236", true, "2");
//map的值={pdf=3251, html=3252}

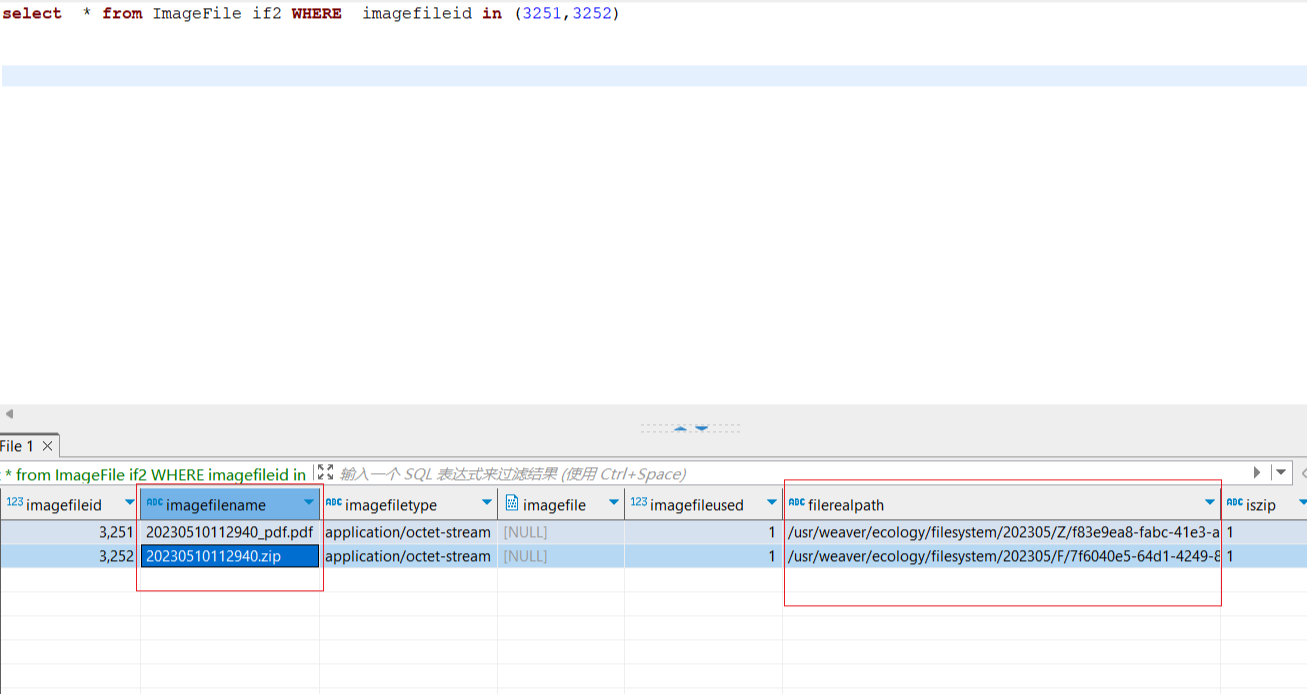

核对文件，查询数据库

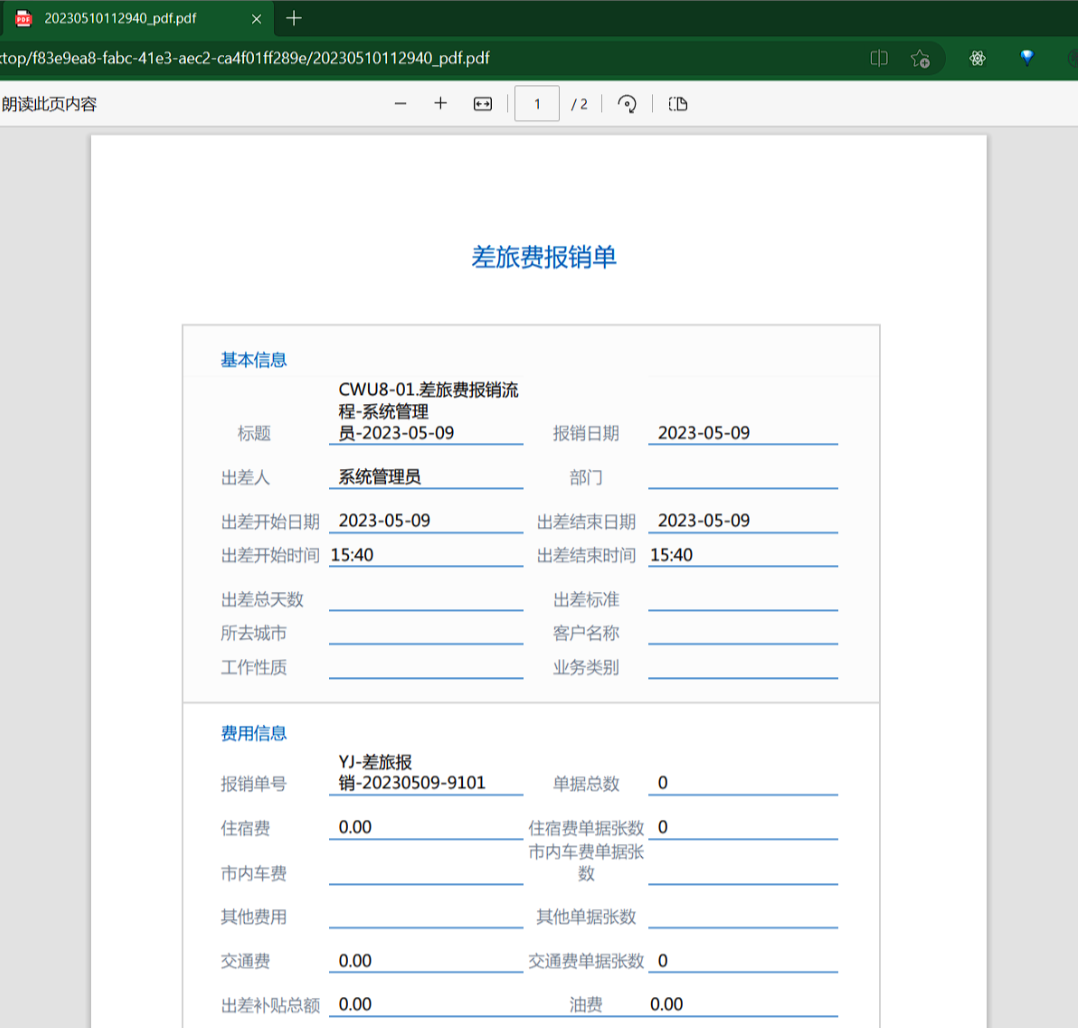

表单存为pdf

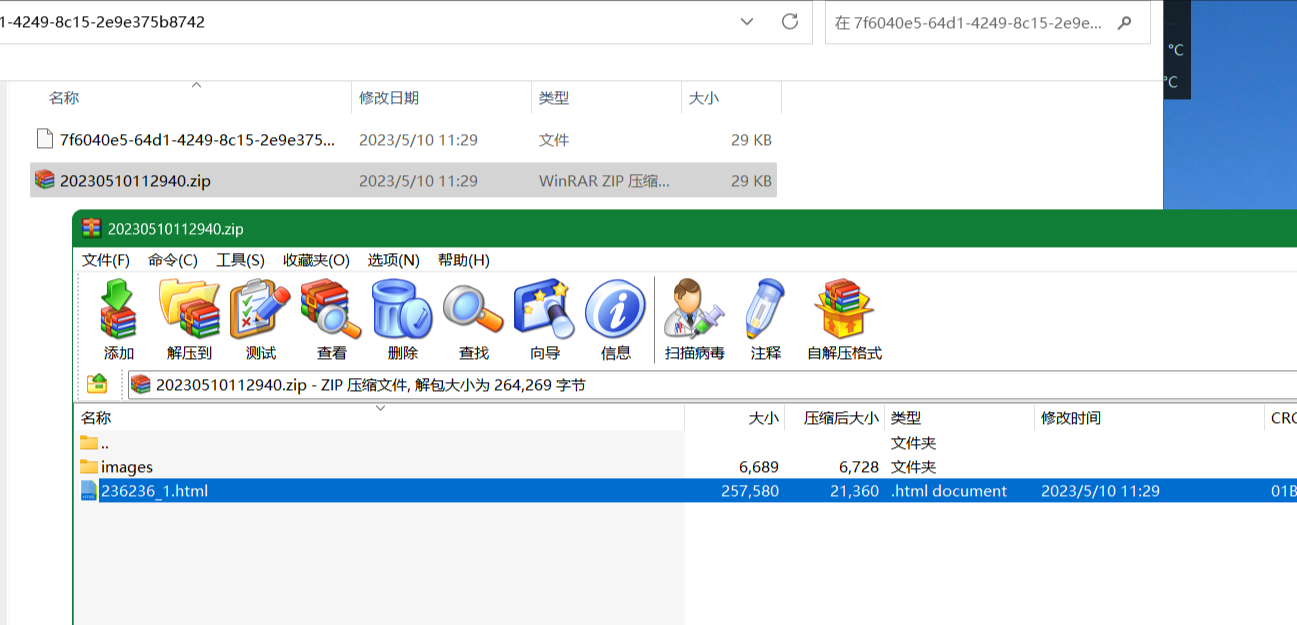

html文件

3、引入字体

需要在对应目录下引入字体文件，否则可能导致转出的pdf样式缺失。

如下图怪怪的。

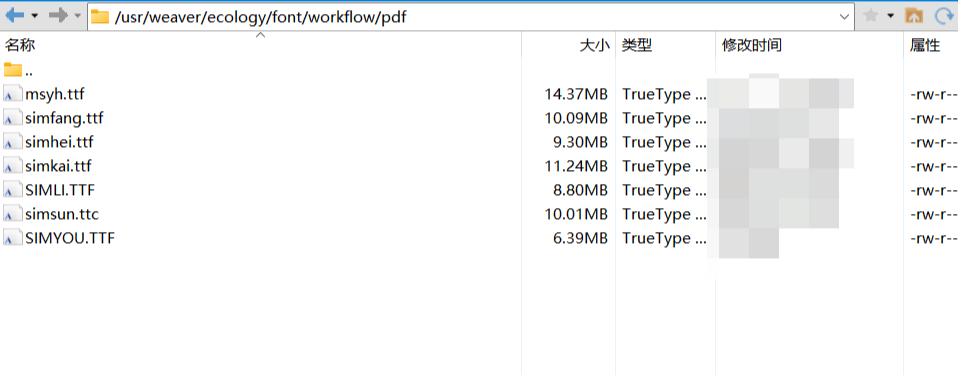

引入字体到对应目录：/weaver/ecology/font/workflow/pdf
